LATEST DEVELOPMENT, ENERGY SAVING WITH COLD LIGHT!
UV curing drying inks, printing inks, coatings, adhesives and other UV-sensitive materials by polymerization instead of evaporation of solvents. Until now conventional mercury UV lamps were used for the curing. But UV-LED sources open additional possibilities.
Application:
UV-curing drying inks, printing inks, coatings, adhesives and other UV-sensitive materials by polymerization rather than evaporation of solvents. So far, conventional mercury UV lamps were used for the cure, but meanwhile, the efficient, environmentally friendly UV-LED technology is a proven and superior alternative. Unlike mercury vapor lamps, the LED curing use semiconductor-based LEDs to generate ultraviolet (UV) light. BELTRON relys on the UV-LED technology's advantages with maximized performance, reliability and UV energy.
Design:

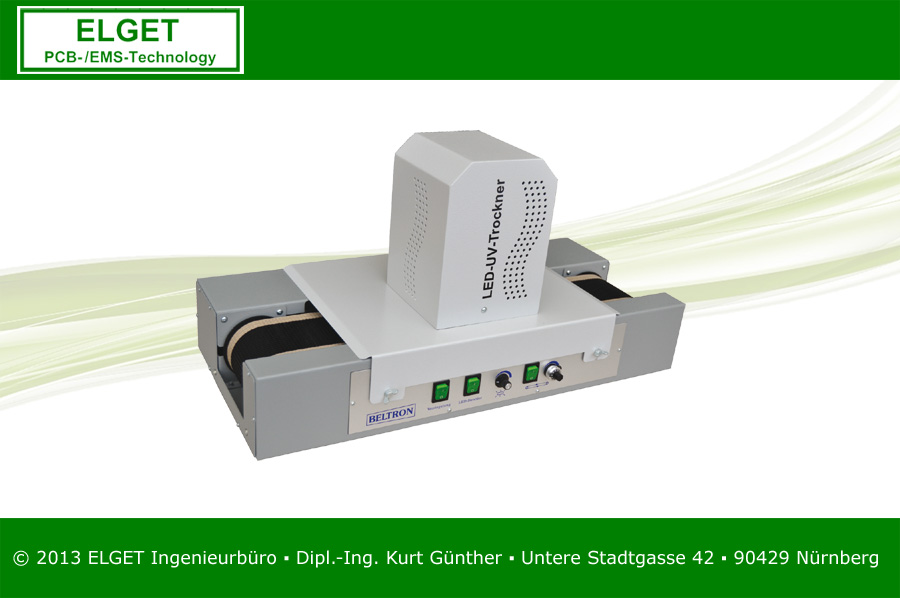

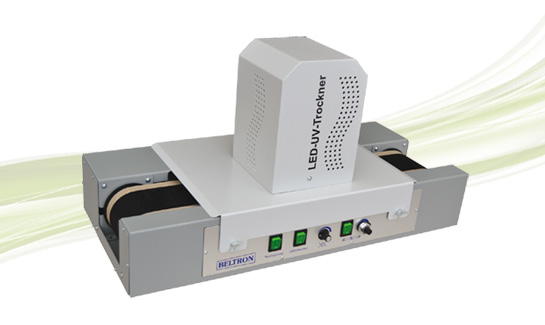

The complete turnkey unit is equipped with a UV LED light irradiation unit. Since the heat generated during the
UV-LED radiation is only 1 / 10 of the heat produced during the conventional UV irradiation, the cooling and exhaust
fans consume less and accordingly less energy. The plant is designed for a working width of 7 cm. The lamp can
be started and stopped instantly and therefore no shutter is required during production. The uv power is adjustable
within 20 to 100%.
Technical Information:
Wave length: 365NM, 395NM
UV-LED-Power: 1-4 W/cm²
Radiation width: 75 mm
Length: 700 mm
Depth: 330 mm
Height: 390 mm
Conveyor belt width: 120 mm
Conveyor belt speed: 1-12 m/min
Passage height: adjustable
Connection voltage: 230V / 50 Hz
| |
