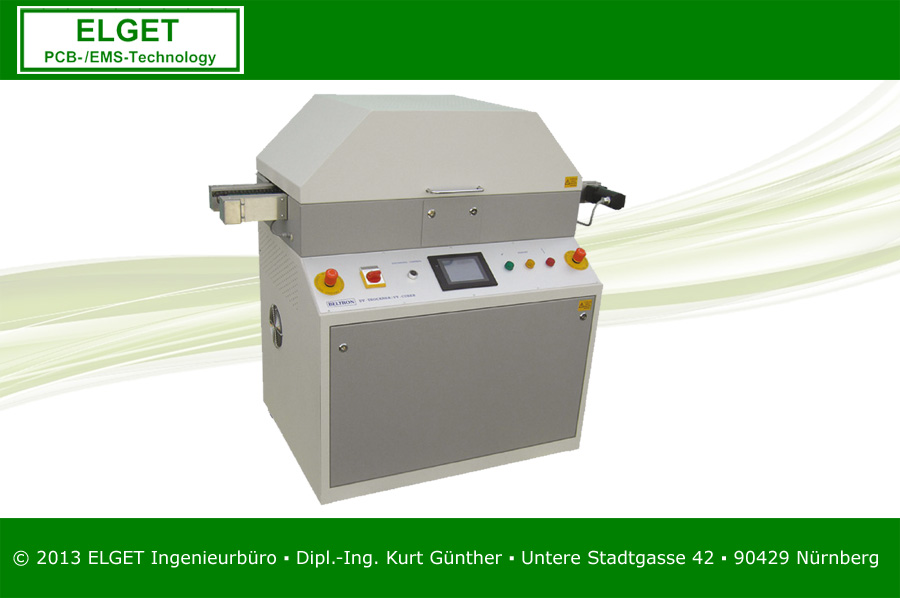

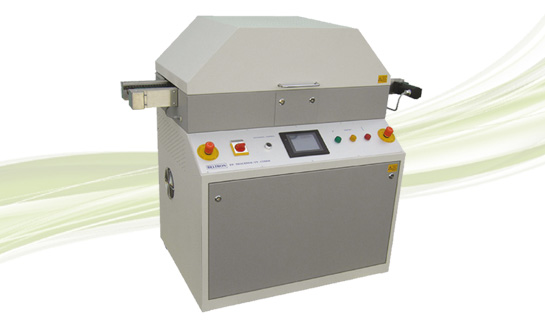

UV DRYER WITH PIN CHAIN CONVEYOR FOR PROTECTIVE PAINT COATINGS ON SINGLE AND DOUBLE SIDED ASSEMBLED PCBS

SINGLE-AND DOUBLE-SIDED USE, FAST AND FLEXIBLE!
UV curing of all UV-reactive materials, such as protective coatings, adhesives, resins and UV coatings on double sided printed circuit boards / assemblies. Suitable for fully automatic inline operation

Application:
UV- drying and curing of all UV reactive materials, i.e. conformal coatings, glues, resins and uv inks.
Useable for stand alone and inline production.

Process data:
The continuously adjustable power control of the lamps between 40 and 100 % uv output enables an optimal
adjustment of the uv power ( 500–5000 mJ/cm² ) to the belt speed ( 0,3 to 3,0 m/min ).

Advantages:
UV-cross linking during fast horizontal transport, controlled UV- dosis on substrates, flexible adaptation to different process requirements, program storage in the PLC control.

Specifications:
The transport system is formed by two transport chains with edge guide and pin pad for printed circuit boards or work-piece carrier. It is width adjustable (standard: 350 mm, alternatively wider). The speed of the chain conveyor is infinitely variable. Equipped with PLC control, touch panel operation, UV performance monitoring with alarm signal, UV-dose indicator in mJ / cm ², selective filter reflectors to reduce substrate temperatures.
