UV-BOX dryer

UV-BOX dryer


Technical Information

PDF-Data sheet

Request by E-Mail

Productpictures

Productvideos


Click on the image to enlarge...

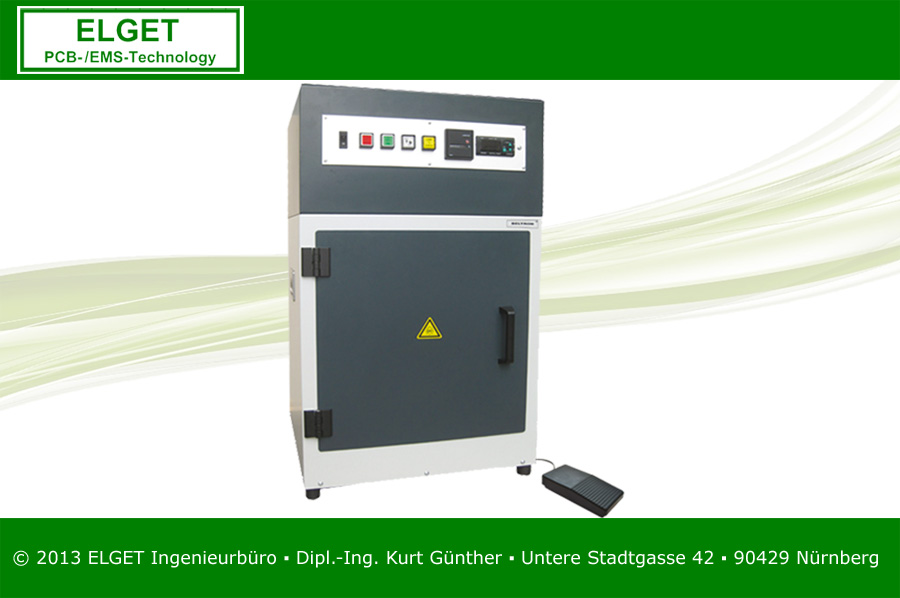

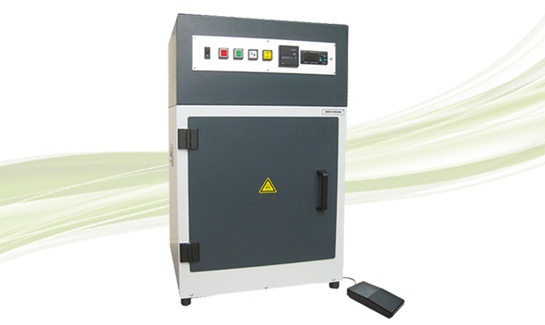

UV-Box-Dryer
Auch für extrem hohe BGs bestens geeignet!

Application:
Applications of the UV box are numerous. Besides the standard tasks, such as curing and bonding, the chamber
may be used for material testing and radiation for chemical and biological applications.

Design:
UV box for laboratory and manual production, various UV emission spectra are possible due to combination of UV lamps and uv filter, manual lamp shutter or optional as automatic electric shutter with timer, high safety by interlocking the door during uv exposure resp. the shutter can not be opened while the door is open, equipped with operating hours counter and capacity code switch (50%/100%) as well as a footswitch to start the curing process, even and homogeneous radiation in the UV chamber, lamp unit with 850W UV bulb (other power optional), high UV intensity due to computer optimized reflector geometry, UV chamber completely equipped with special reflectors, radiation area max. 400 x 300 mm. Due to the large equipment door the unit is capable of handling larger/higher materials. Low heating due to air-cooled UV chamber. The BELTRON UV chambers are supplied with 2 year warranty.

The UV chamber is used successfully in:
electronic industry, textile industry, packaging industry and automotive industry.

Technical Information
Dimensions: 466 x 488 x 754 mm
Total weight: approx 36 Kg
Lamp: 850 W (Fe, Hg or Ga)
Radiation area: 400 x 300 mm
Filter glass: WSG, QRZ, SLF
Power: 230V, 50Hz


We are happy to inform you about our products and services.
Phone: +49 (0) 911 529 96 20 or by email: elegt@elget.de
