UV-DRYER WITH DRAWER

UV-DRYER WITH DRAWER


Technical Information

PDF-Data sheet

Request by E-Mail

Productpictures

Productvideos


Click on the image to enlarge...

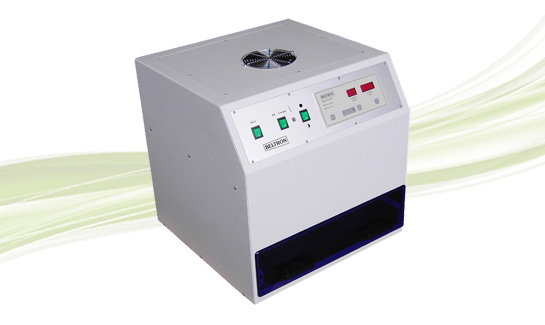

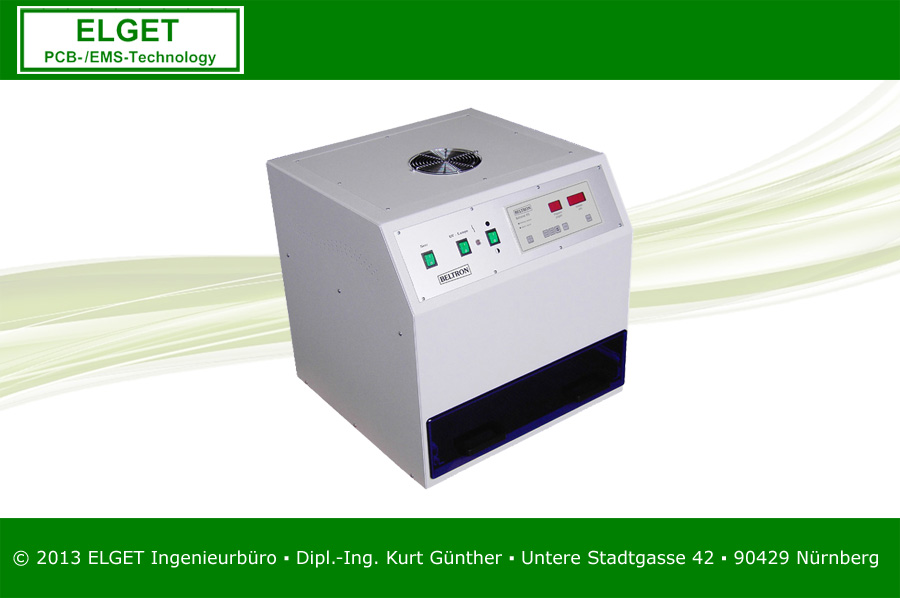

UV-DRYER WITH DRAWER

Sicher für den Bediener, schnell und zuverlässig!

Application:
The UV dryer BELTROMAT is used for uniform drying / curing of UV coatings, adhesives, and is particulary suitable for use in the production of small series, with repairs and in the laboratory. Also suitable for higher substrates in which a lateral irradiation is necessary.

Design:
Stationary UV-dryer for small batches, repairs and lab operation, front cover with single drawer and viewing window. Low heating devices with optimized air flow, even for longer drying times, even optimal illumination. Safety lock against accidental opening of the drying chamber during the curing process. Control by timer and function keys. Low-power consumption due to 50% power reduction. Electric shutter - therefore no compressed air required.

Scope of Supply:
- Stationary uv dryer with drawer
- Unit dimensions: 570 x 570 x 460 mm (W x D x H)
- Drawer dimensions: 495 x 540 x 90 mm
- Drawer extension: > 500 mm
- 3m power cable

Optional:
BELTROMAT control computer
Technical Information
Power supply voltage: 230 V / 50 Hz
Power consumption: max 850 W
Fuse: (F1/F2) 8 A-slow
Power supply: 230 V / 50 Hz
Mercury droped uv lamp (Hg)
Lamp power: 800 W
Irradiated area approximately: DIN A3
