UV BUMP WITH PARALLEL BELT TRANSPORT

UV dryer for the double-sided UV cross-linking of solder resists.

Application:
UV cross-linking of photosensitive solder mask before or after thermal Final Cure for binding free photo initiators and improvement of the final properties of the solder resist.

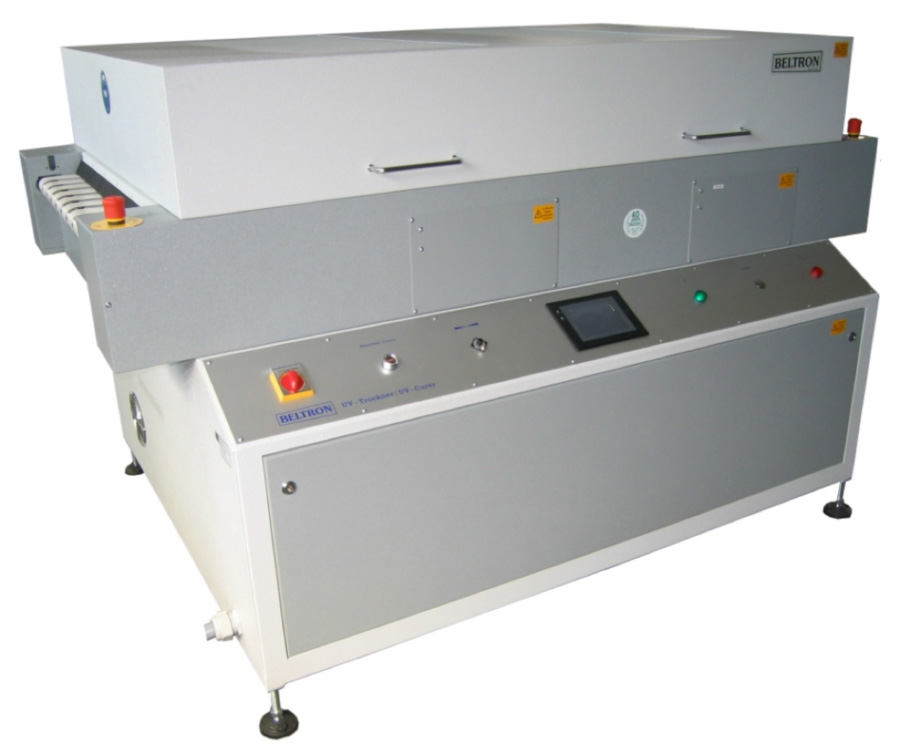

UV bump with parallel belt transport

UV-Trockner

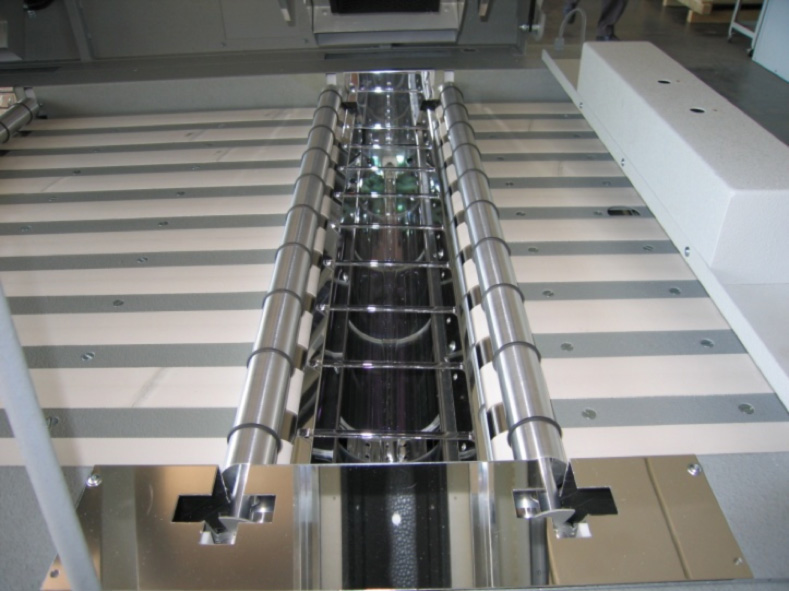

Belts with transport monitoring in crossing the lower UV lamp unit

Click on the images to enlarge...




PROCESS DATA
Photoinitiators in the soldermask required for UV exposure are partly cross-linked during exposure process. The UV cross-linking in the UV-bump links a large part of the excess initiators and improves the surface properties of the solder resist considerably in terms of solvent resistance, surface resistance, solderability and contamination.
Depending on the equipment a UV dose of 500 - to 4,000 mJ / cm ² is applied on the solder resist.

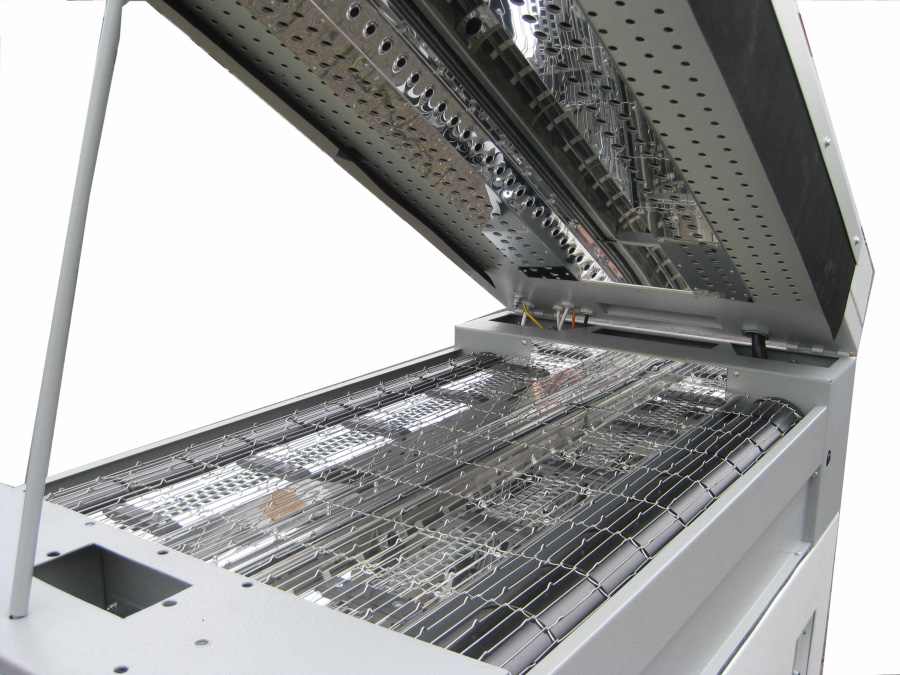

UV bump with metal-grid belt conveyor

UV-Trockner

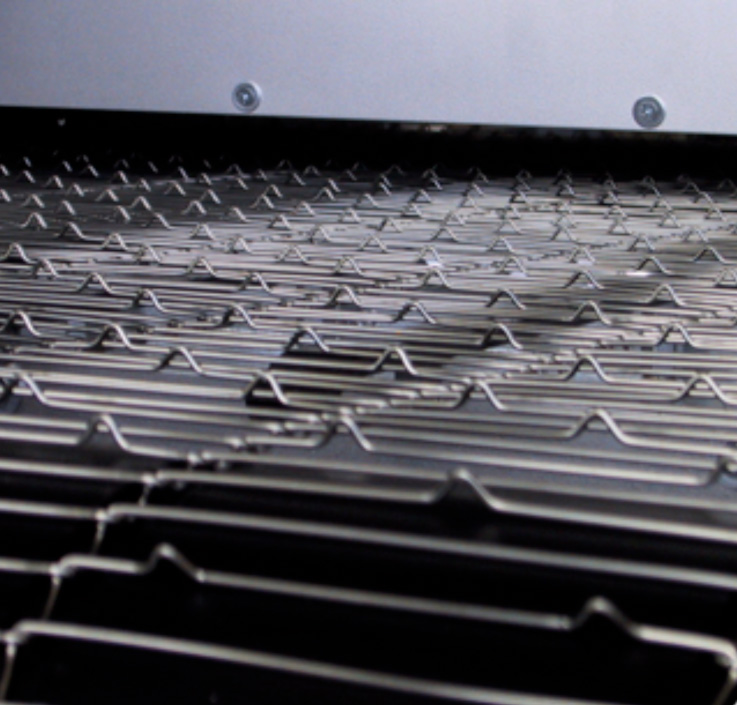

Metal grid belt with point-like support for a complete radiation at the PCB bottom side

Click on the images to enlarge...



SPECIFICATIONS
Horizontal transport system of 10 parallel transport belts or metal metal grid belt, one or two UV lamps above and below the transportation according to the required belt speed and UV dose, PCB maximum width 720 mm, UV energy continuously adjustable from 40 - 100%, UV dose (each UV lamp 120W/cm) at 4.5 m / min and 100% UV-power: 1.500 mJ / cm ², PLC control for control and monitoring of program memory and continuous UV power meter with limit Alarm, reduced thermal stress in particular thin printed circuit boards using selectively filter reflectors and electronic cooling system.



UV bump with metal grid belt transport in special design Slimsize

UV-Trockner

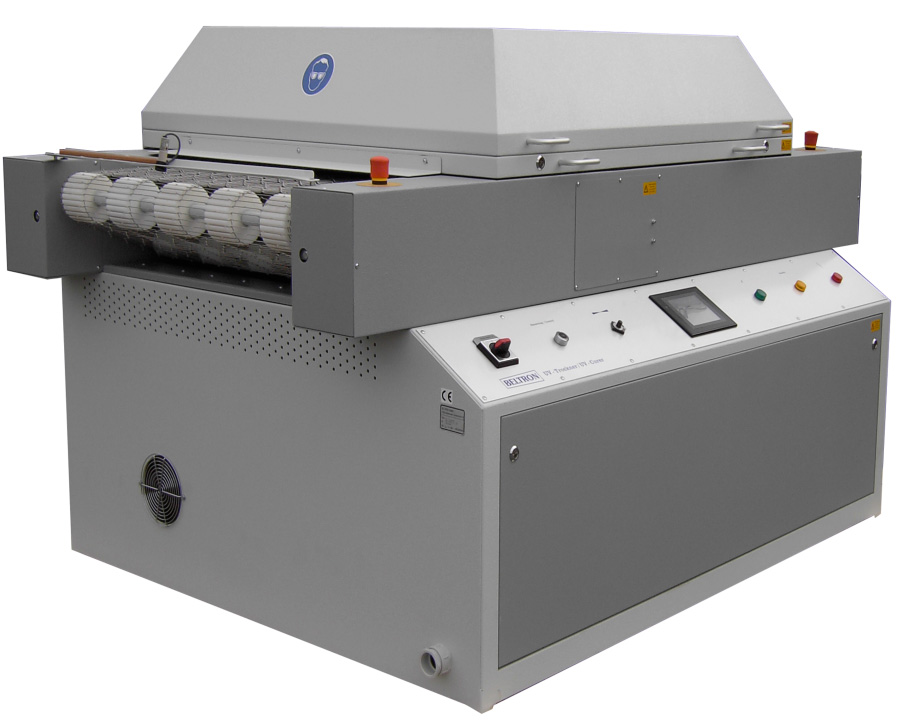

Special design “Slimsize” for minimum space

Click on the images to enlarge...



FEATURES
UV cross-linking double-sided, simultaneously in fast horizontal continuous run, controlled delivery of UV dose, flexible adaptation to different process requirements with program stored in the PLC.



UV-bump in production

UV-Trockner

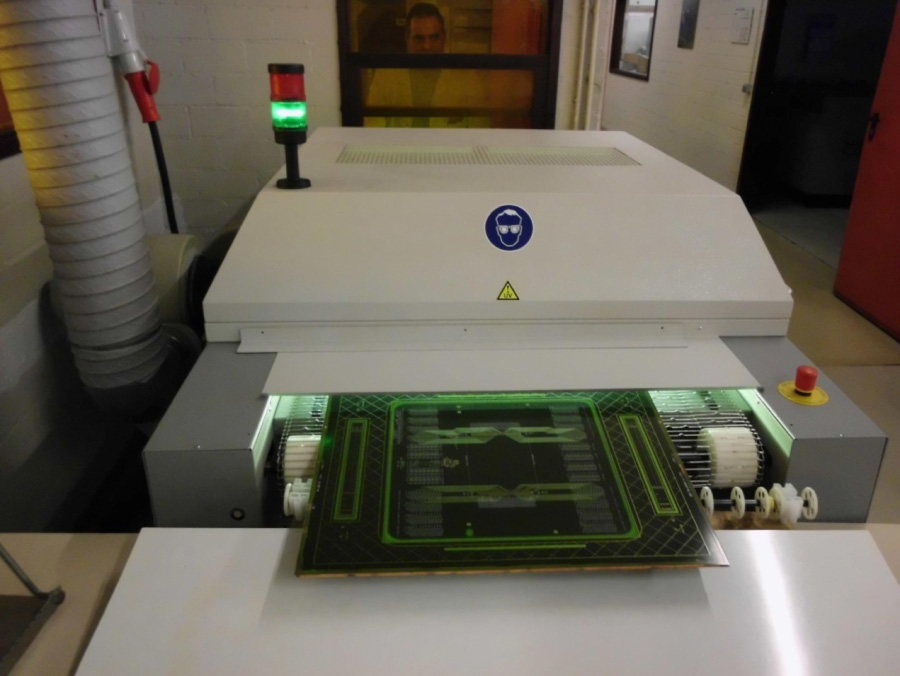

UVUV-bump double-sided with belt transport before thermal Final Curing Oven in a circuit board production
UV-bump double-sided with metal grid transport in a circuit board production

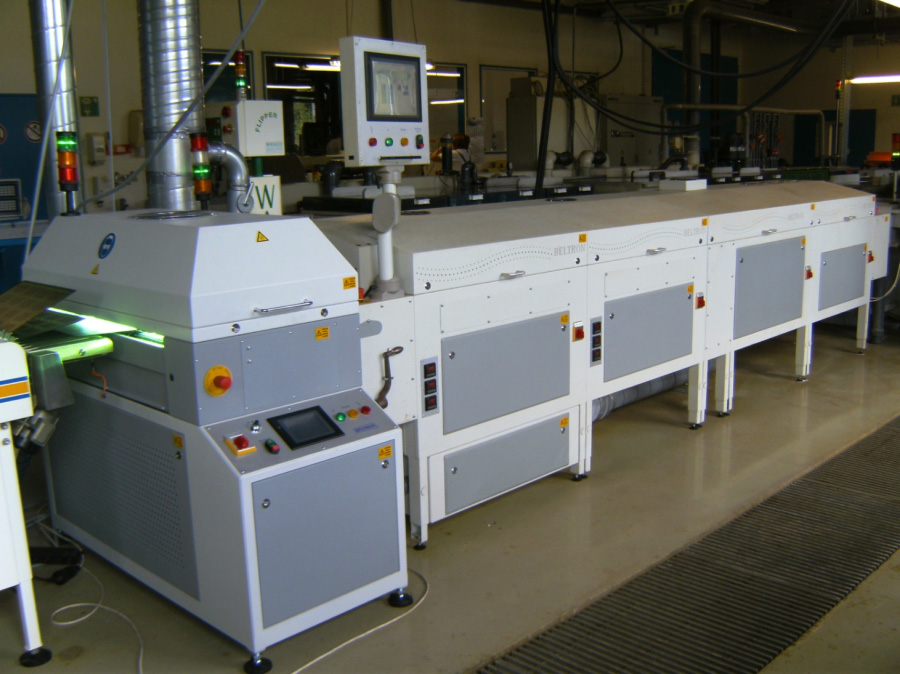

UV-bump Slimsize in a Final Curing Line for solder resists

Special design “Slimsize” for minimum space
