UV-BUMP DOUBLE-SIDED FOR SOLDERMASK

UV BUMP WITH METAL GRID BELT TRANSPORT IN SPECIAL DESIGN “SLIMSIZE”


Technical Information

PDF-Data sheet

Request by E-Mail

Productpictures

Productvideos


Click on the image to enlarge...

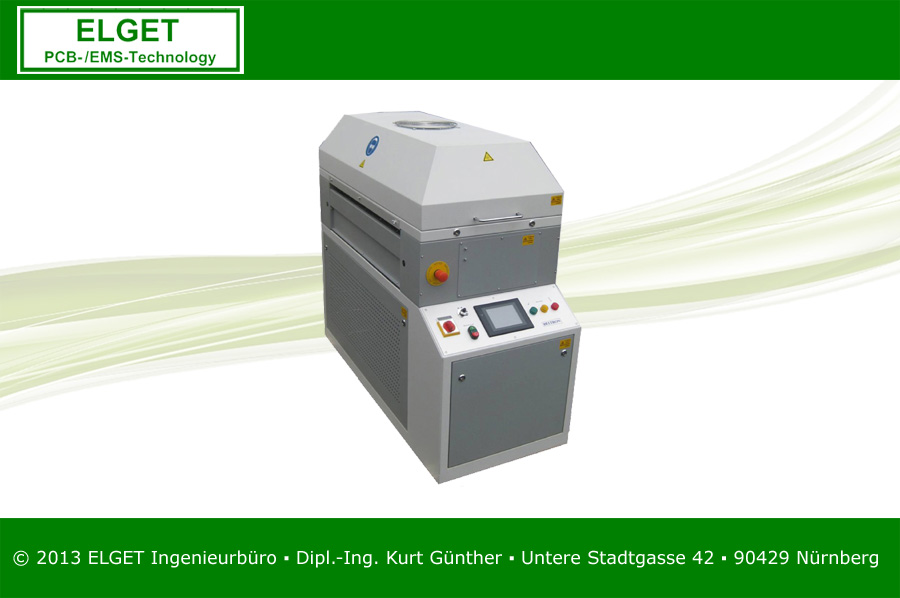

UV dryer SLIMSIZE

UV bump with metal grid belt transport
in special design “Slimsize” requires minimal space,
often used in production lines

Application:
The Slimsize uv dryer is ideal for use in existing systems and is suitable for products such as paper, cardboard, foil, glass, circuit boards, plastics, wood and metal. Due to its overall width of only 600 mm it can be integrated in any system concept (also later on). The UV-dryer is available with one UV lamp or as double-sided UV dryer with one UV lamp above and 1 below the product.



Design:
Steel structure in Slimsize version, belt speed in the range 1:10 infinitely adjustable, electronically controlled cooling system, radiator power continuously variable 20-100%, simple and quick lamp replacement, lamp housing made of aluminum with UV lamps, each with 80-200 W / cm power , special-faceted reflectors for optimal focusing of the UV radiation, service and maintenance friendly, exhaust fan with a connection for exhaust pipe. Optionally, the UV dryer may be equipped with selective filters and quartzglass (to reduce the product temperature), and PLC with touch screen.

Technical Information:
Conveyor belt: Teflon belt or metal belt
Working width: 35 - 140 cm
Control: Compact control or PLC with Touchscreen
Lamp filling: Hg (Mercury), Fe (Iron) und Ga (Gallium)
Number of lamps: 1 or 2 uv lamps
(1 from above and 1 from below the conveying system)
Lamp power: 40 to 120 W/cm
Working height: 925 - 975 mm (acc. to SMEMA)
Machine dimensions: 600 x 1500 x 1265 mm (WxDxH)
Connecting power: 3 x 400 V / N / PE 50 Hz


We are happy to inform you about our products and services.
Phone: +49 (0) 911 529 96 20 or by email: elegt@elget.de
