TEMPERATURE AND UV MEASURING
EASY TO USE, GOOD PRICE!

UV-Integrator Typ D


Technical Information

PDF-Data sheet

Request by E-Mail

Productpictures

Productvideos


Click on the image to enlarge...

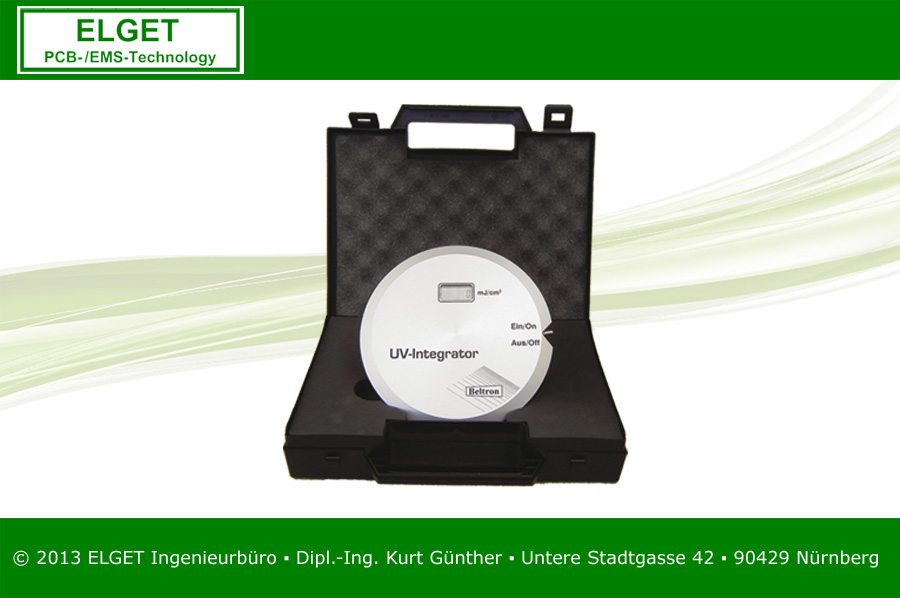

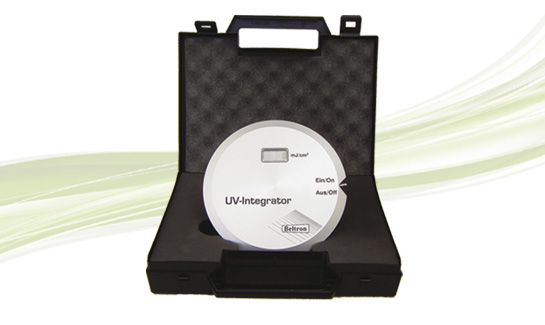

UV-Integrator Typ D

Application:
The BELTRON UV Integrators are used for registering of uv energy in uv curers, uv dryers, uv exposure units, printing plate exposure systems, and other graphic machines. By testing the uv energy and modification of the production process false exposures and waste of material could be avoided.

Design:
On the bottom side of the instrument a sensor is located who registers the uv energy. Special filter and photodiods absorb the visible as well as the infrared spectral range, so only the needed spectral range is measured. At the end the uv energy is display on a lcd display.

A storage bag is included in the scopy of supply. To secure a optimal utilization, we offer to our customers a regular calibrating service. This special offer is normally done within a few hours in our workshop and is based on measuring values of official calibration laboratories.

Technical Information:
Display: 6-digit LCD-display 0 - 999999 mJ/cm²
Dimensions: 140 mm Ø, 13 mm thin
Weight: approx. 500 gr.
Power supply: 3,6 V Lithium-Battery
Power consumption: 100μA (10.000 operating hours)
Casing: Aluminium casing
Spectral measuring range: 250 - 410 nm


We are happy to inform you about our products and services.
Phone: +49 (0) 911 529 96 20 or by email: elegt@elget.de
