HANDLING TECHNOLOGY - FLEXTRANS ® SUPPORT FRAME
FOR FLEXIBLE PRINTED CIRCUIT BOARDS AND FLEXIBLE MATERIALS
UNIQUE SYSTEM, EASY HANDLING!

The Flextrans ® support frame represents an entirely new method for handling flexible printed circuit boards and materials during a one-and two-sided coating process, e.g. Spray coating or curtain coating.

The simplicity of the system features is unique and makes working in the coating of flexible printed circuit boards easy and inexpensive.
It is a requirement to fulfill. On both long sides of the flexible material 4 holes must be available that can be used for fixing. When inserting the material the holes of the material are taken by special pins and the unit can be processed as a rigid printed circuit board.

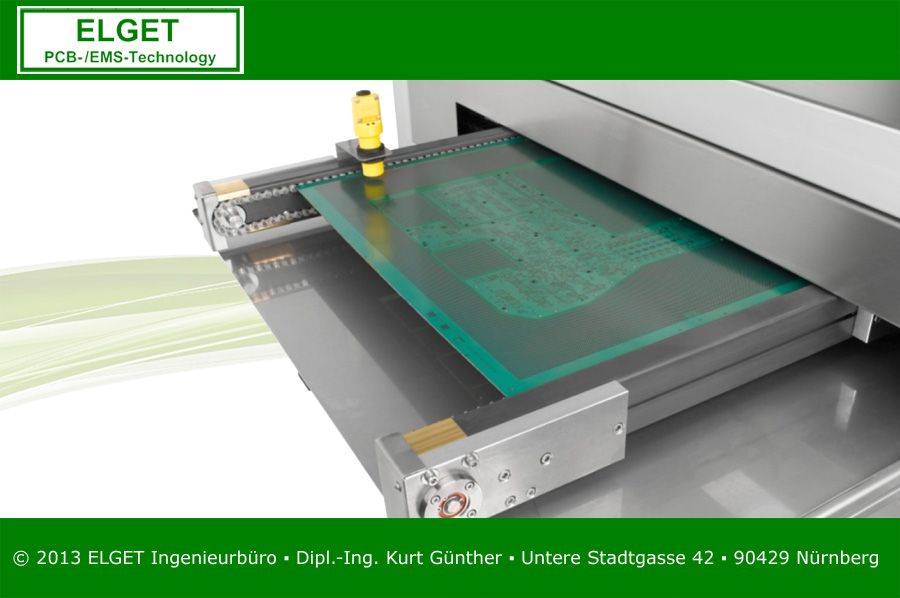

Rigid board on
PIN chain transport

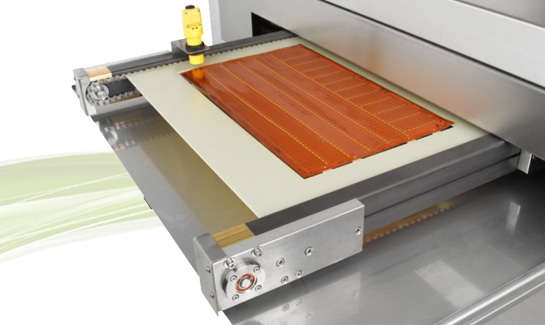

Flexible PCB fixed in
FlexTrans®-support frame
on PIN chain transport




Structure and function of the Flex-Trans® support frame is easy.
The simplicity of the system quickly may lead to imitation, so we have the protection of utility patents by the German Patent Office.

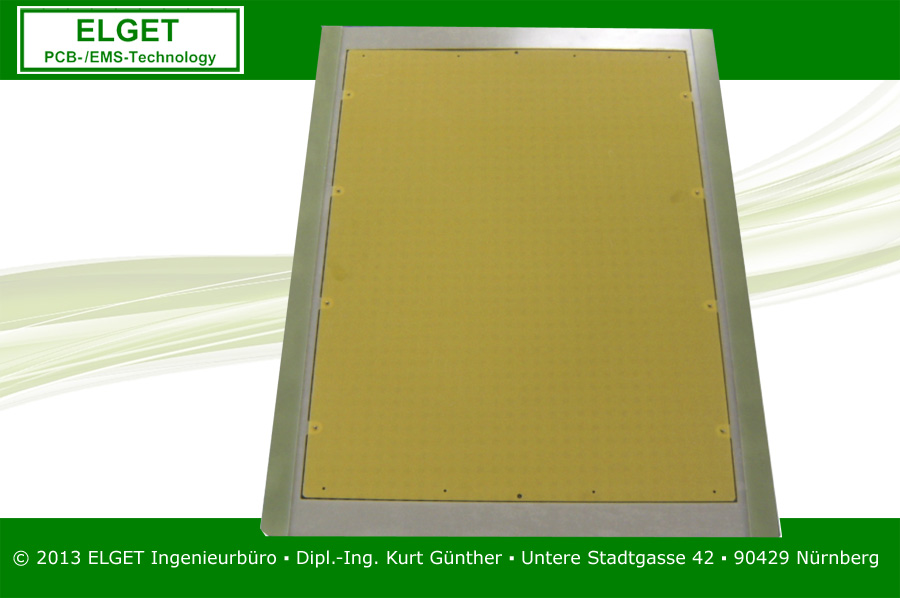

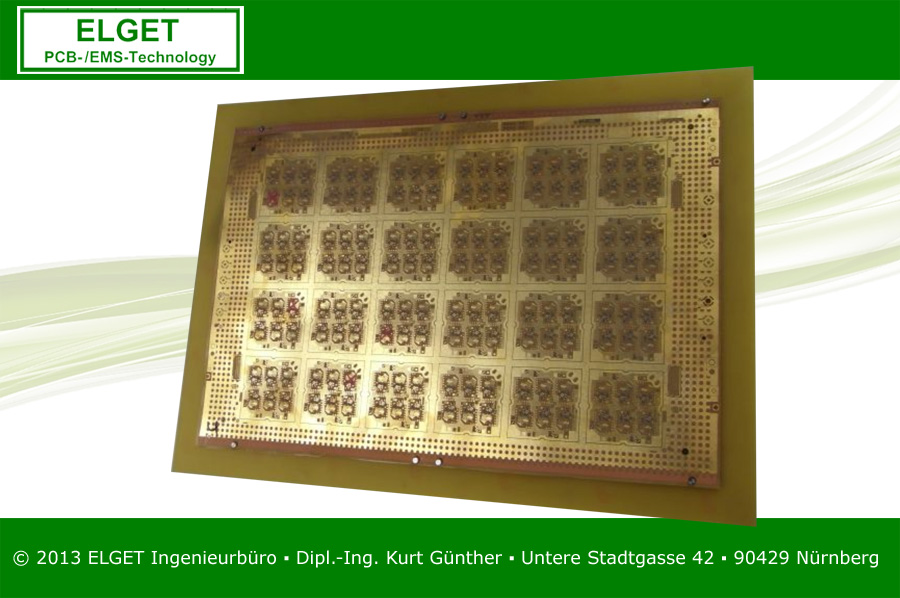

Flexible PCB fixed
in FlexTrans®-support frame

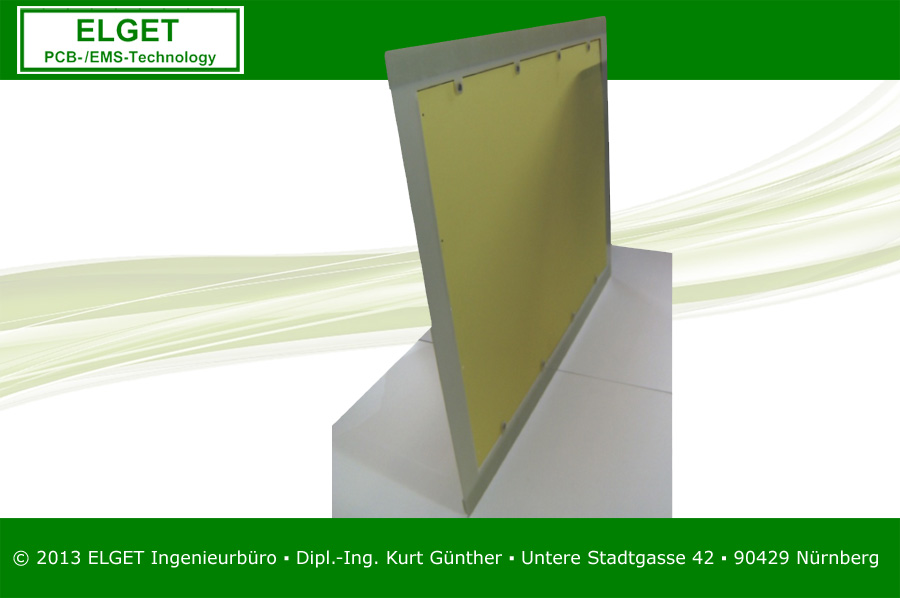

thin base material
in Flextrans ® support frame
vertical
position



Technical Description:
4 pins on each side to take the flexible material into the 4 holes on each side. The clever arrangement and shape of the pins the material is maintained and can be placed vertically and vice versa even without sliding of the pins. The handling in commercial handling systems is therefore completely given. Automation of loading and unloading can be realized with adapted loader and unloader for series production process.

The marketing of the FlexTrans ® support frame carried by the companies
ELGET Ltd. www.elget.de and ahk Service & Solutions GmbH www.ahk-service.de.



We are happy to inform you about our products and services.
Phone: +49 (0) 911 529 96 20 or by email: elegt@elget.de
