BELTROTHERM CONTINUOUS BELT DRYER

Final Curing photo soldermask after exposure and developement with UV-bump operation first


Technical Information

PDF-Data sheet

Request by E-Mail

Productpictures

Productvideos


Click on the image to enlarge...


Final Curing photo soldermask after exposure and developement with UV-bump operation first

Product description:

Double-sided Final Curing Line for soldermask
Pos 1: Feeder
Pos 2: UV-bump double-sided
Pos 3: BELTROTHERM-dryer doulbe-sided
Pos 4: Stacker
The line is working fully automatic after loading in 3-shift operation without supervision.
The length of the BELTROTHERM-dryer is designed according to capacity requirements.
The high-end properties of the solder mask to prevent undercutting in aggressive chemical processes and offer maximum durability in multiple soldering processes.

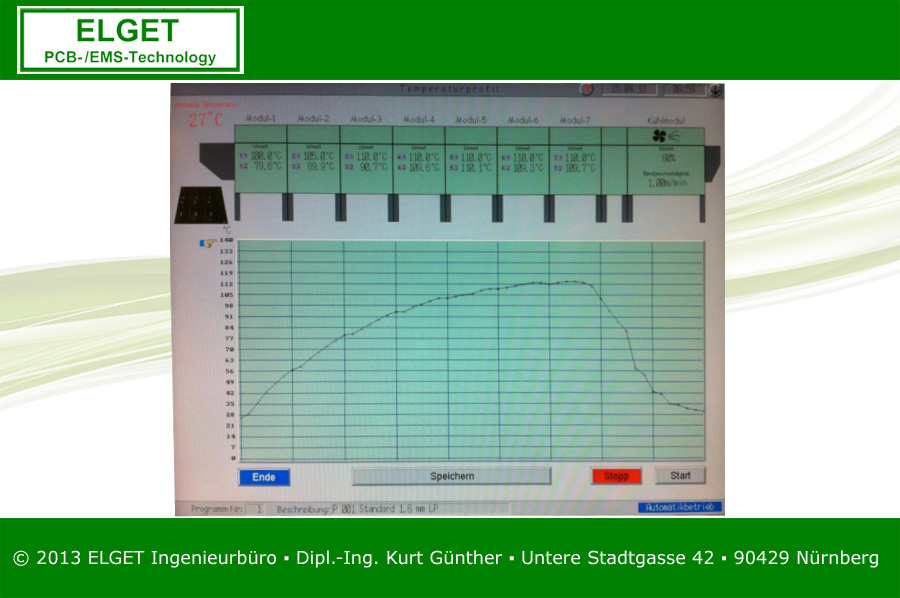

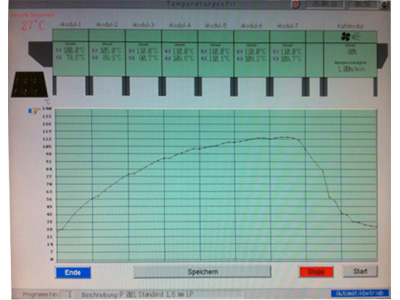

For different PCB thickness ranges and special types of temperature profiles - tuned to an optimal drying process – are created and stored in the PLC. Optimized temperature profiles are recorded and stored in up to 120 programs.


Click on the images to enlarge...

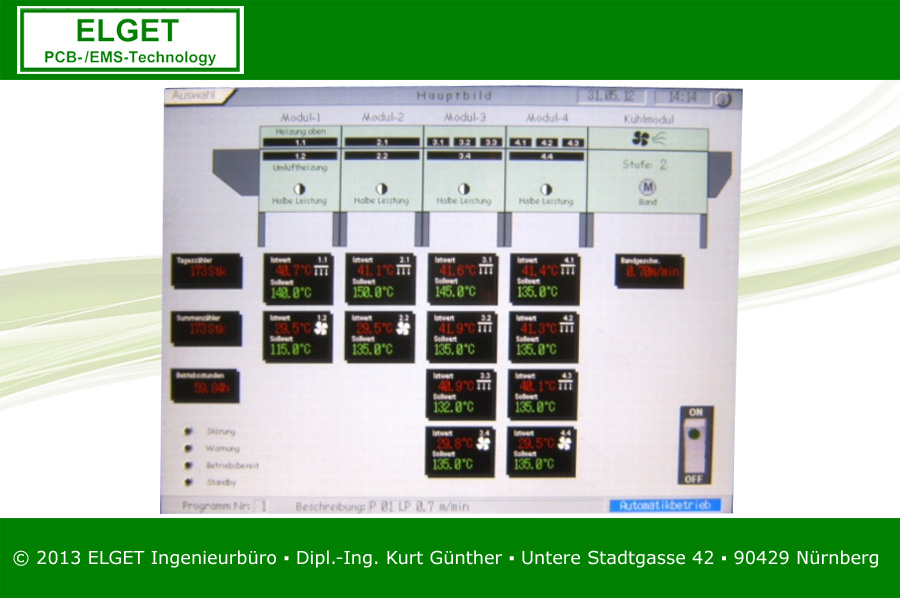

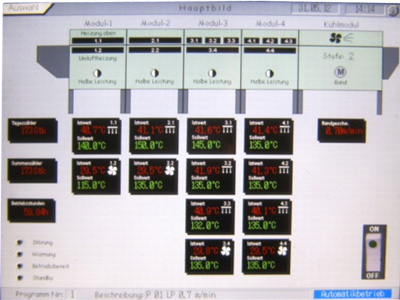

The appropriate drying program is called by touch on the touch screen and changed within minutes. The few minutes changeover usually go into the preparation of the coating line for the new lot. The operational readiness will be reported by signal to the upstream machine. The touch screen OMRON PLC shows a clear view of the operation condition and is ready for more input.
