BELTROTHERM CONTINUOUS BELT DRYER

BELTROTHERM continuous belt dryer for predrying after soldermask coating


Technical Information

PDF-Data sheet

Request by E-Mail

Productpictures

Productvideos


Click on the image to enlarge...


BELTROTHERM continuous belt dryer for predrying after soldermask coating

This unique drying technology allows evaporation and predrying of coated wet lacquers i.e. soldermask, etch resist etc. within 5 to 7 minutes.
The surface is pre-dried tack-free and residue-free development after exposure ensured. Depending on the drying equipment the process is running on single or double-sided. The drying process is independent of the type of coating, the evaporation and drying is carried out in the horizontal pre-drying process, quickly and completely.

Coating types:
Screen printing on one or both sides vertically, single-side curtain coating, spray coating on one or both sides, dip coating, roller coating and more.

Screen printing single-sided

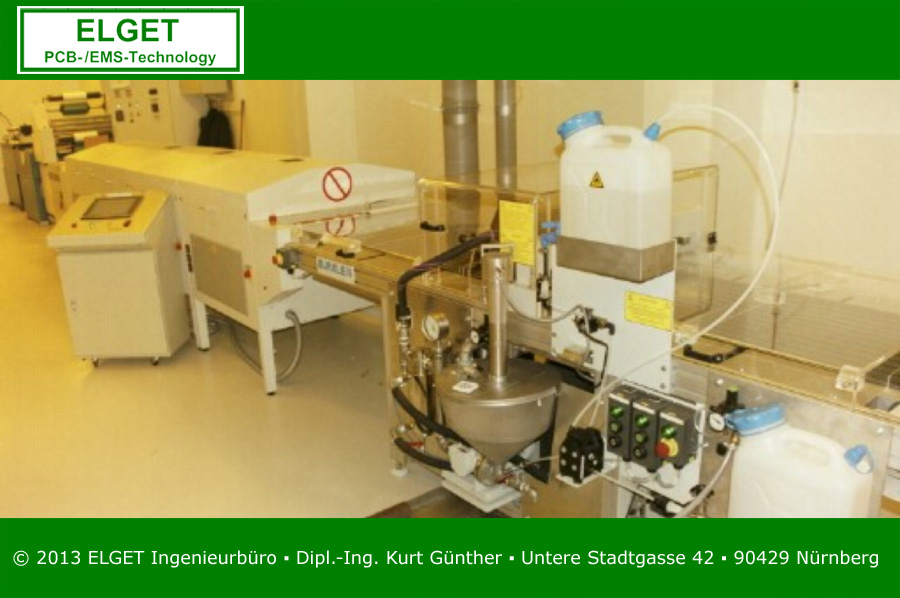

Curtain coating single-sided
Spray Coating double-sided

Click on the images to enlarge...

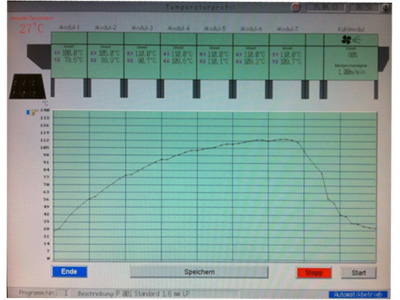

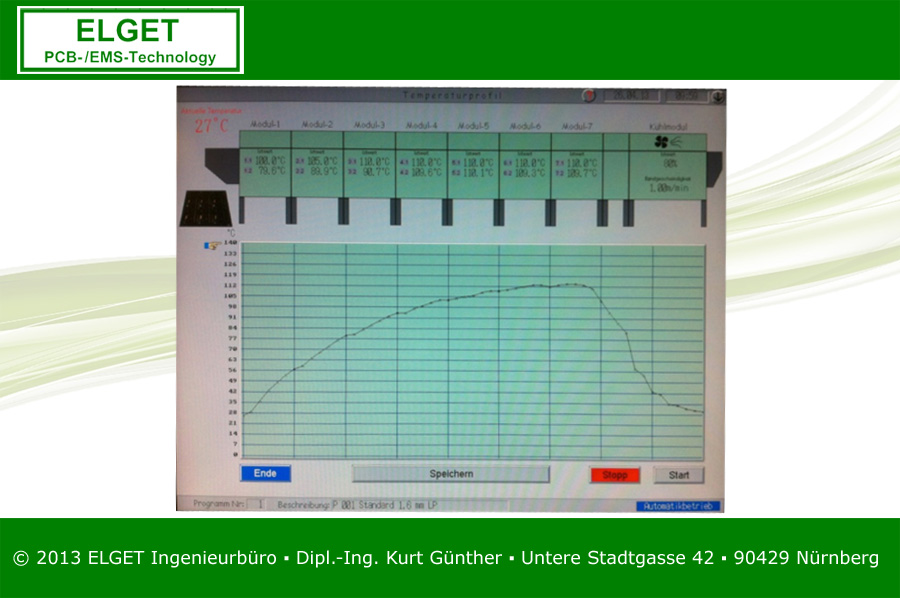

For different PCB thickness ranges and special types temperature profiles - tuned to an optimal drying process – will be created and stored in the PLC. Optimized temperature profiles are recorded and stored in up to 120 programs.

SPS-Steuerung

Click on the images to enlarge...

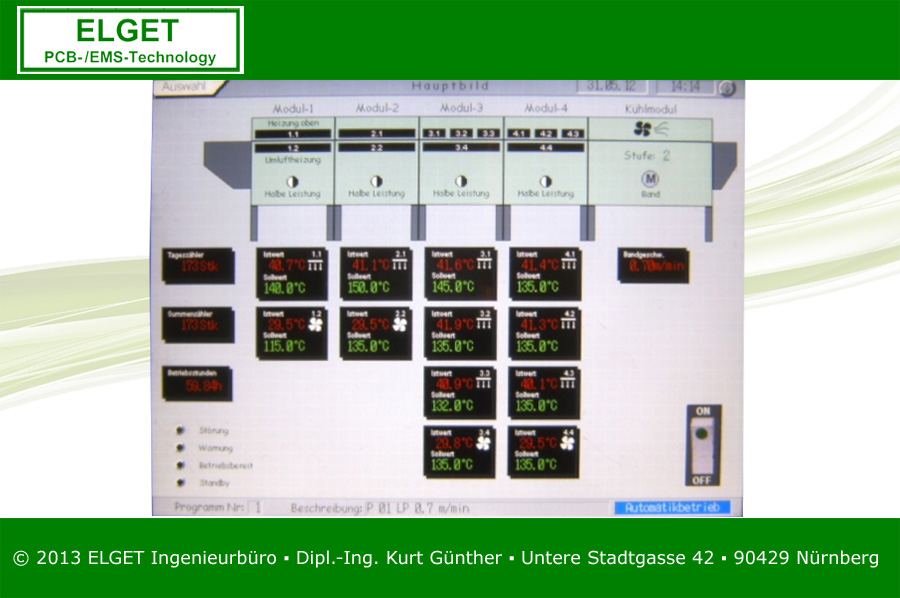

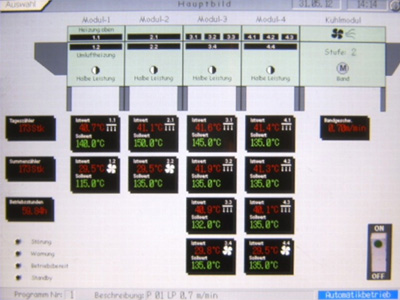

The appropriate drying program is called by touch on the touch screen and changed within minutes. The few minutes changeover usually go into the preparation of the coating line for the new lot. The operational readiness will be reported by signal to the upstream machine. The touch screen OMRON PLC shows a clear view of the operation condition and is ready for more input.
