TEMPERATURE MEASURING DEVICE FOR TEMPERATURE PROFILING

Application:
Simple and convenient unit for measuring temperature profiles in horizontal continuous dryers.

The probe wire (wire thermocouple) is affixed to a printed circuit board or other substrate and connected by means of a compensating line to the data logger, the data are transmitted directly. The data logger is connected via USB or RS-232 cable to a laptop, the temperature measurement can be observed simultaneously live. The measurement data can also subsequently be transferred from the datalogger to a PC and entered into the program,.

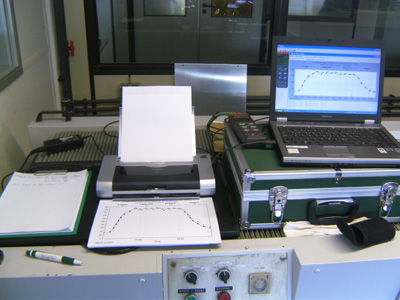

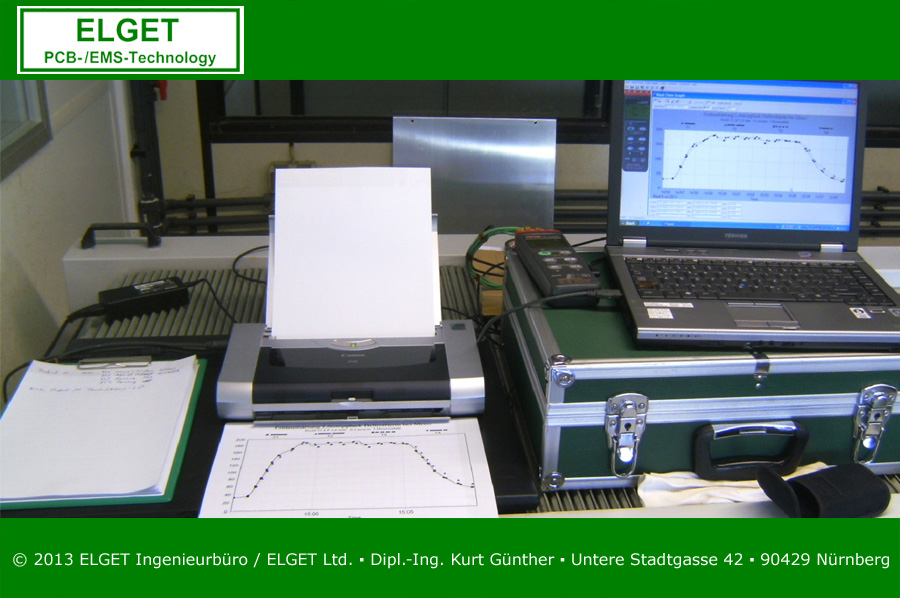

Datalogger with live recording and printer

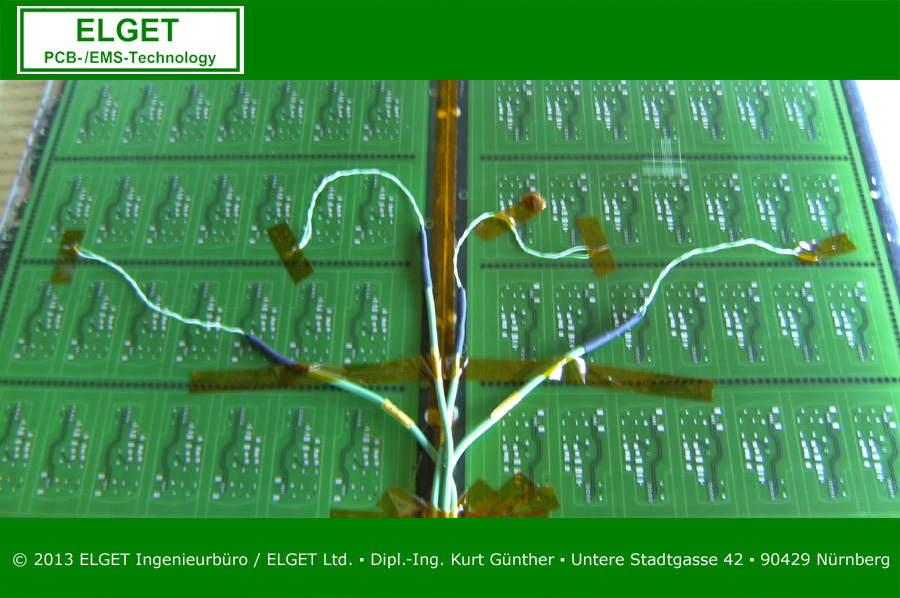

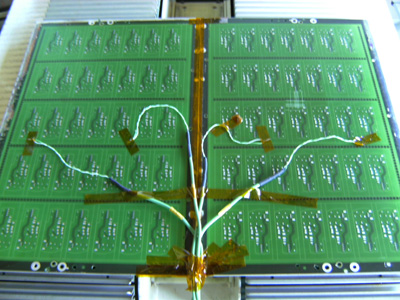

Measuring PCB with 4 measuring points

Click on the images to enlarge...


A standard measuring system consists of

Digital Data Logger with 4 measuring channels, and data logger function to record data, software for processing the data and temperature profiles, USB or RS-232 cable to connect the data logger to a laptop or PC, operating instructions.

The measuring cable for a continuous dryer consists of

- 4 x 0.15 m wire sensor / thermocouple wire
- 4 x X m compensation cable, length depending on the length of the system
- 4 x plug
fully assembled, without measuring circuit board, glued with heat-resistant tape into a bundle, on the plug and on end of cable marked with T1 - T4
